Behringer Multimode Filter Resonator Module 1047 Modular System

description Behringer Multimode Filter Resonator Module 1047 Modular System

4033653032230, MULTIMODE-FILTER-RESONATOR

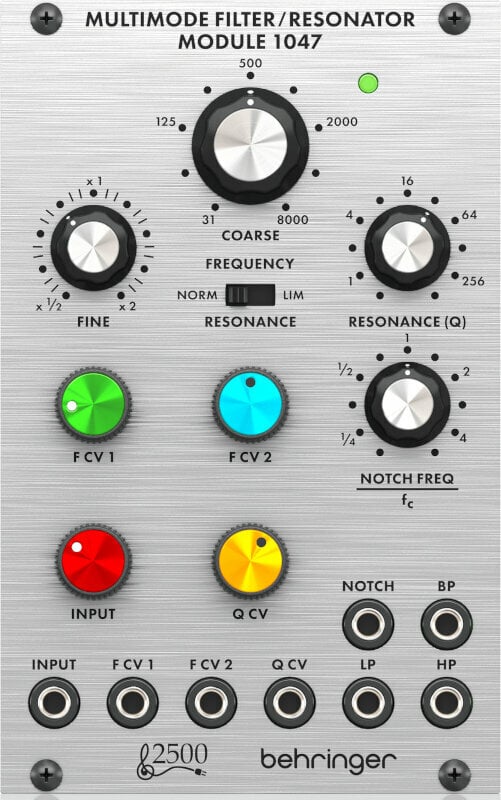

The MULTIMODE FILTER/RESONATOR MODULE 1047 is a classic voltage controlled 12 dB per octave state variable filter, the filter is a matched transistor design for a vintage sound. The 1047 filter is equipped with a coarse and fine filter frequency controls, a resonance (Q) control which acts on all 4 filter outputs, a resonance limit switch prevents signal overload when high levels of resonance are used, the notch frequency/fc control allows the notch frequency to be adjusted up or down from fc as set by the frequency controls, 2 summed frequency CV attenuators and a resonance (Q) CV attenuator for maximum flexibility, the signal input is also equipped with an attenuator. All this gives you endless possibilities of filter curve shape to create the ultimate sound.Тype: Eurorack ModuleMade in: ChinaHeight (cm): 12.9Depth (cm): 4.3Package Contents: ManualWidth (cm): 8.1MIDI Interface: NoUSB MIDI: NoDepth (mm): 43.0Bluetooth: NoUSB to Host: NoUSB: NoArpeggiator: NoWeight (g): 170.0Sequencer: NoColour: SilverControls: Notch;Frequency CV;Fine;Resonance;Coarse;InputSound Engine: AnalogAftertouch: NoEffect Types: FilterPitch Bend: NoUK/EU Power supply included: NoModulation: YesInputs: Jack 3,5 mm TSDisplay: NoBattery Operation: NoPower Supply: EURORACKArranger: NoOutputs: Jack 3,5mm TSOscillators: NoHeight (mm): 129.0LFO: NoHeadphone Output: No

specifications 4033653032230 MULTIMODE-FILTER-RESONATOR
