4961310142537, AT-XP7

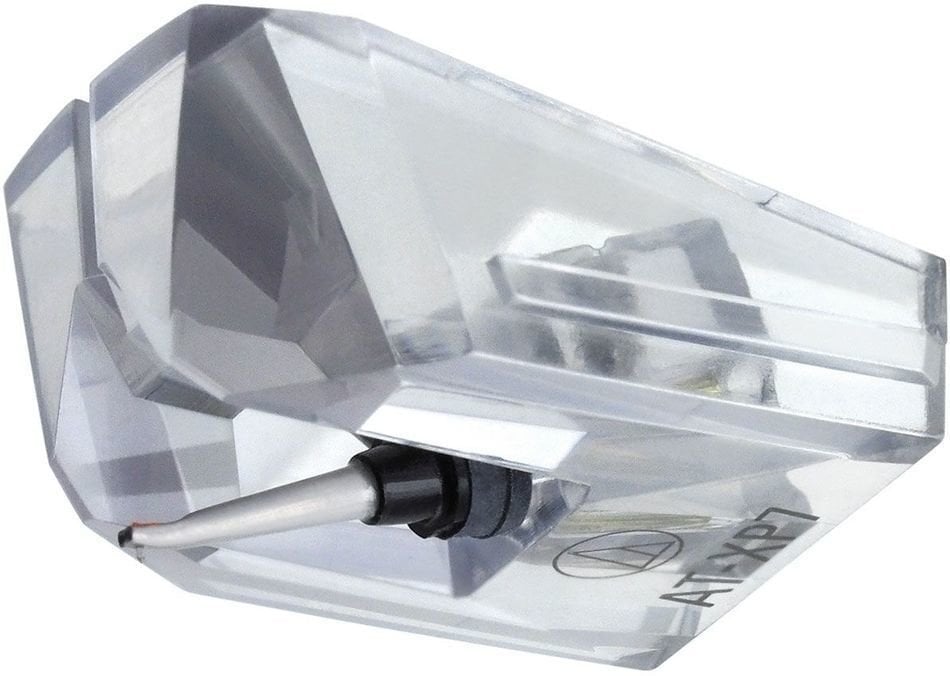

Replacement cartridge with half-inch mount that is specially designed for the needs of DJs and features a highly-rigid polyphenylene sulfide (PPS)/glass fibre body and a tracking force of 2 to 4 grams (3 grams standard). It also offers a powerful output level of 6 mV, and its 0.3 x 0.7 mil elliptical bonded stylus tip tracks the record groove with high accuracy for outstanding audio reproduction. Tapered aluminium cantilever, stainless wire suspension and double-layered rubber dumper further ensure precise tracking and channel separation (22 dB at 1 kHz). The cartridge is also specifically designed to provide maximum visibility of the stylus tip. Frequency response: 20 Hz-20 kHz. Recommended load impedance: 47 kOhms. Vertical tracking angle: 20 degrees. Dimensions: 17.2 x 17.8 x 28.3 mm. Weight: 6.2 g.Channel separation at 1 kHz: 22 dBMounting: 1/2"Tracking force recommended: 3gRecommended load capacitance: 100-200 pFImpedance (Ohm): 6700.0Recommended load resistance: 47 kOhmWeight: 6,2 gColour: BlackТype: Cartridge;VM Stereo Dual MagnetShape: EllipticalVoltage: 6 mVTracking Force: 2g - 4gFrequency Range: 20 Hz - 20 kHzTracking angle: 20°Made in: China
